253-SMB67-A3

n/a

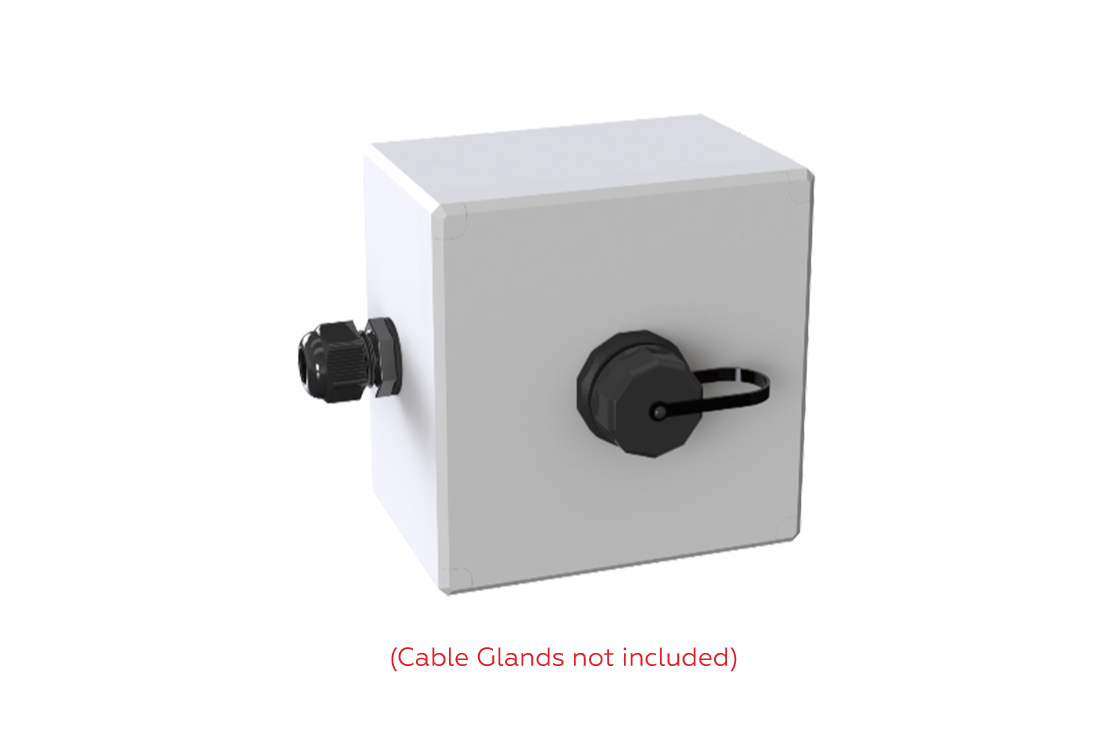

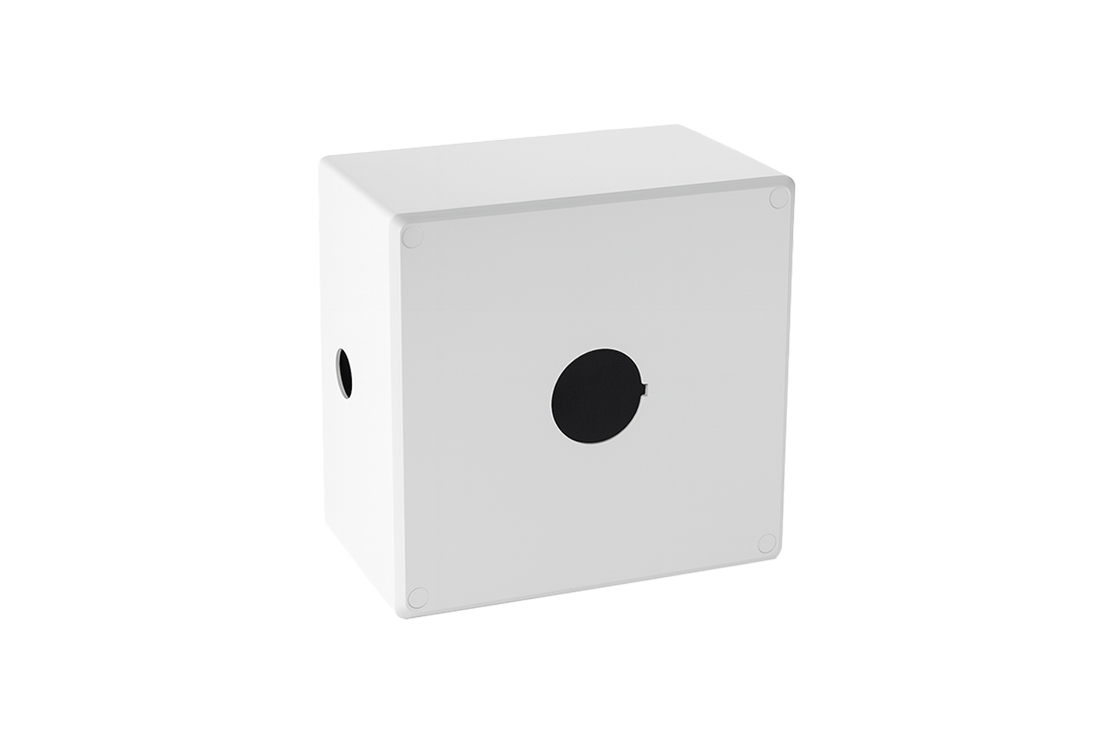

Surface-Mount Box, 1-Port, 1-Left-In/1-Top-Out, Blank, IP66/67.

Height Width Depth Weight
4.8 in 4.7 in  3.2 in 0.67 lbs
*Dimensions based on without outlets and glands

Description

Features :

    • Compatible with 250-IOM68 Outlet Modules
    • ABS UL 94 V-0
    • Environmental protection: IP66/67
    • Impact protection: IK07.
    • Cable gland IP rating: IP68
    • IEC 60529; UL 1863.R Compliant
    • 5 mm–10 mm O.D. round twisted-pair cables
    • 2 mm–3 mm O.D. round optical fiber cables
    • 2 mm–3 mm O.D. optical fiber zipcords

Accessories (ACCESSORIES AVAILABLE ARE SHOWN ON THE ENCLOSED SPEC):
259-SLC01-F0C1 – Cable Gland, M16, Plastic, 5-mm–10-mm Cable O.D., Simplex*
259-SLC01-F0A1 – Cable Gland, M16, Plastic, 2-mm–3-mm Cable O.D., Simplex**
259-SLC01-F0A2 – Cable Gland, M16, Plastic, 2-mm–3-mm Cable O.D., Duplex***

*Recommended for round twisted-pair and optical fiber cables
**Recommended for simplex round optical fiber cables
*** Recommended for duplex zipcord optical fiber cables
